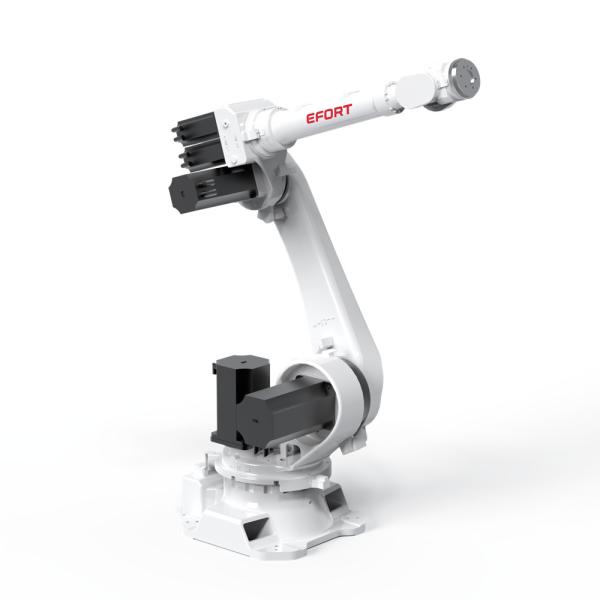

General Industrial Robot In Grinding Polishing Handling Operations Palletizing For Building Materials Logistic ER70-1900

Brand Name : EFORT

Model Number : ER70-1900

Place of Origin : China

MOQ : 1 set

Price : RFQ

Supply Ability : 10000 sets per year

Delivery Time : 4-6 weeks

Packaging Details : wooden box, L*W*H 2110*860*1810, 6 sets in 20' container

Color : Grey

Payload : 70 kg

Reach : 1901 mm

Repeatability : ±0.06 mm

Type : Articulated

Controlled axes : 6 Axes

Robot weight : 545 kg

Robot IP grade : IP54/IP67(Wrist)

Cabinet IP grade : IP54

Drive mode : AC servo drive

Installation : Floor

Customized : Negotiable

Contact Now

General Industrial Robot In Grinding Polishing Handling Operations Palletizing For Building Materials Logistics ER70-1900

Robot Highlights

Thanks to the high stiffness structure, with high-speed intelligent palletizing application software, the takt is improved by 20%, bring customers more efficiency;
Multiple specific application software could be integrated, with soft PLC and a variety of field bus interface, which enable customers easily face various application challenges;
High performance collision detection function helps safety realization

Robot Applications
It can be used in grinding, polishing, handling operations, palletizing, etc.

Industries

Suitable for auto parts, photovoltaic, food and beverage, building materials, logistics and warehousing and other industries.

Robot Specifications

General Industrial Robot In Grinding Polishing Handling Operations Palletizing For Building Materials Logistic ER70-1900

General Industrial Robot In Grinding Polishing Handling Operations Palletizing For Building Materials Logistic ER70-1900

Model ER70 - 1900
Type Articulated
Controlled axes 6 Axes
Max. payload on wrist 70 kg
Repeatability ±0.06 mm
Robot weight 545 kg
Reach 1901 mm
Robot IP grade IP54/IP67(Wrist)
Cabinet IP grade IP54
Drive mode AC servo drive
Installation Floor
Installation
enviroment
Ambient
temperature
0~45 ℃
Ambient
humidity
RH≤80%( No dew nor frost allowed )
Vibration
acceleration
4.9 m/ s² (<0.5 G)

Allowable load
moment at wrist
J 4 182 N · m
J 5 182 N · m
J 6 120 N · m
Allowable load
inertia at wrist
J 4 12.68 kg · m²
J 5 12.68 kg · m²
J 6 10 kg · m²
Maximum speed J 1 210 °/sec
J 2 160 °/sec
J 3 190 °/sec
J 4 310 °/sec
J 5 270 °/sec
J 6 400 °/sec
Motion range J 1 ±180°
J 2 +70 °/- 130°
J 3 +175 °/-80°
J 4 ±360°
J 5 ±115°
J 6 ±450°


Packing Mode

General Industrial Robot In Grinding Polishing Handling Operations Palletizing For Building Materials Logistic ER70-1900

CASE REFERENCE

FAQ About Robot

1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with industry standards and regulations. What certifications does it have?

Answer: This industrial robot has passed strict industry certifications and standards, including ISO quality management system certification and CE certification and ATEX for painting robots, ensuring its quality and safety.

2.Question:[Technical support] I need an industrial robot with reliable technical support and training services. Do you offer support in this area?

Answer: Yes, we provide comprehensive technical support and training services, including operation training, maintenance training, and on-site support to ensure you can fully utilize the performance and capabilities of the industrial robot.

3.Question:[Material download ]Where can I obtain relevant information about robots, including parameter manuals, mathematical models, and so on

Answer: https://www.efort.com.cn/en/index.php/service/downservice.html

4.Question:【Warranty】how about your warranty

Answer :Yes, our products come with a certain period of warranty. The specific warranty period and coverage may vary depending on the product model and region. Please provide your location and the product model you are interested in to obtain more accurate information. In general, the warranty period is 12 months.

5.Question:【Payment】how about the payment if we place orders to you .

Answer :We accept multiple payment methods, including but not limited to TT, L/C, etc. You can choose the payment method that is convenient for you.

6.Question:[Customization] Do you provide any possible customized service .

Answer: Yes, we provide customization services within a certain range, such as color customization, boot UI customization, LOLO customization, etc., according to the specific requirements of customers. Please provide your customization requirements, and we will do our best to meet your needs.

7.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to understand the long-term operating costs.

Answer: The maintenance costs for this industrial robot are very low. We provide maintenance services including regular inspections, preventive maintenance, and quick-response technical support to minimize your operating costs.

8.Question: [Easy to use ] I expect efficient programming capabilities in the industrial robot for quick deployment and adjustments on the production line. Does it offer efficient programming?

Answer: This industrial robot comes with user-friendly programming interfaces and advanced programming capabilities, allowing for quick and easy deployment and adjustments on the production line.

9.Question: [Reliability] How reliable is the industrial robot? I need a stable and dependable machine to ensure production continuity.

Answer: This industrial robot undergoes rigorous quality control and testing, ensuring excellent reliability and stability. It is built with advanced technology and high-quality materials to ensure continuous production.
